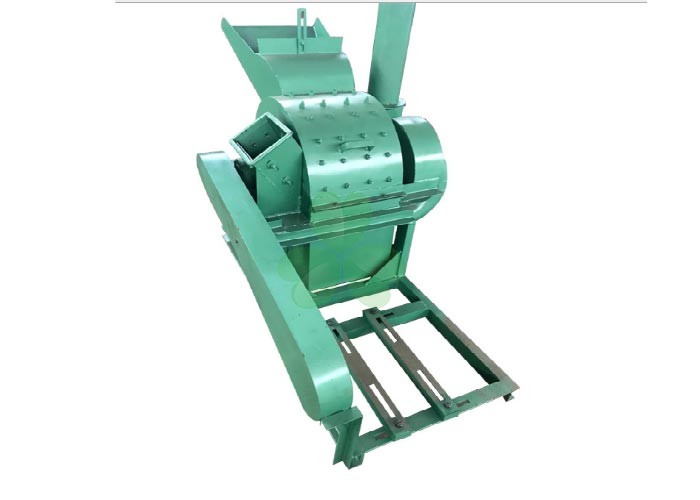

Wood Sugarcane Crusher Machine / Wood Crusher Chipper Shredder
Main Features of wood crusher machine
Wood Crusher Machine has a small size, little investment, much return, low energy consumption, high efficacy, easy usage and maintain and many advantage. wood crusher machine for making sawdust is the perfect equipment that used to produce edible fungus and let you become rich. It also can used to produce the raw materials of chipboard, sawdust board, density board and paper mill.
wood template crusher Applications
This wood shredderr / wood pulverizer/wood chipper/integrate type machine crushing hard wood wet tree branch is widely used in waste template processing plant, bamboo plywood processing plant, wood-based panel factory, composite board factory, power plant boiler raw material combustion and the use of individual wood processing plants.
Wood pallet shredder structure is more complex, the use of hammer broken principle, in front of conveyor belt feeding, feeding port feeder, which has the first crushing system, except the nail system, the second crushing system, exhaust dust system , Belonging to the automated system with the nail removal crusher
Introduction of wood crusher
1 Bigger capacity and the particle size can be adjusted. It can be designed according to the customers’ needs, making one of crusher to chipping or crushing, overcoming the shortcomings caused by fast feeding speed ,use big mouth to feed .
2 High automaton,just need one person or two person feed the big wood log or board in to the mouth then it can crusher automatically.
3 Chipper first and crusher second ,chipper can chip wood log or wood board to 15-35mm thick and 3-5cm long,which is ready to have a further crushing process by the next crusher ,the second crusher part will further crush the wood chips and finished size with 1-10mm.
Features Of wood Crusher Machine
1 It is used widely.
2 Compact design with high production efficiency, easy operation and maintenance
3 Excellent wear-resistance;upper and lower housing made from cast iron or carbon steel for long service life;
4 Even crushing function of multi-cavities which is suitable to crush hard materials.
5 Reasonable design of leveling plate making the finished material finer and cubic- shaped without internal cracks.
6 Low and big feed opening make the production line easy to arrange and increase the size of feeding material.
Technical parameter of machine for produce sawdust
| Model |
1400-700 |
| Discharge conveying(mm) |
1200×12000 |
| Knife roll diameter (mm) |
1100 |
| Feeding size(mm): |
1400*700 |
| Knife Q’ty(PCS) |
32 |
| speed(r/min) |
926 |
| Material maximum diameter(mm) |
500 |
| Feeding speed(m/min) |
0—33 Variable frequency conversion |
| output(mm) |
90%<100 |
| Capacity(m³/h) |
60-100 |
| Motor power(kw) |
180 |
| feeder power(kw) |
11*2 |
| Oil pump motor power(Kw) |
4 |
| Machine size(mm) |
9600*2400*3300 |
| Conveying motor power(Kw) |
7.5
|
|
1 Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
2 Do You Arrange Shipment For The Machines?
Yes, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
3 Suitability of motor?
As there are many voltage standards in different countries in the world, please send us your exact information of the power supply available, then we can modify the motor accordingly.
4 After sale service?
we will offer you the best service to you after the sale , the more detail , you can check it in the Service on our website.
5 How about the documents after shipment?
After shipment, we ll send all original documents to you by express, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
